LAN CABLE TESTER & MULTIMETER-Php1,980

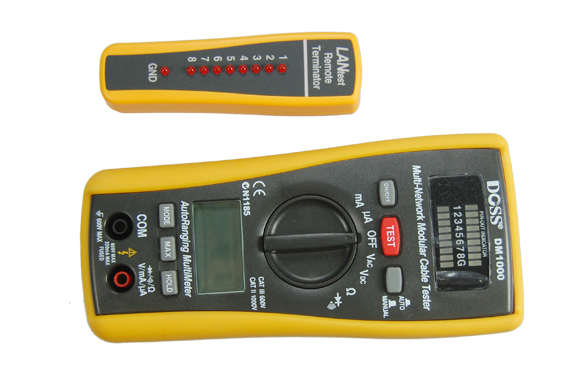

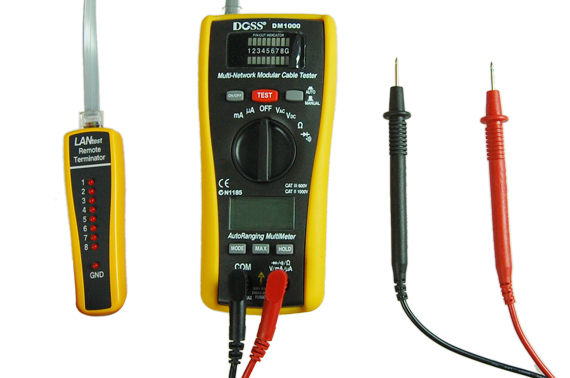

Our new and much improved LANPRO 2 in 1 cable tester is an innovetive tester that allows the user to verify cable continuity, open & shorts, cross-connections and measure AC/DC voltage/current, resistance and diodes. The included Remote Terminator allows installed cables to be tested either at th ewall jack or patch panel which will save you time and money.

Features

• Hand-held and easy to operate.

• Easy to read LCD display.

• Easy to readand verify cable status and continuity; open, short, and mismatches.

• Auto scan pin assignment.

• LEDs indicate the actual pin configuration of 10BASE-T and 10BASE-2 Thin Etrhernet, FJ45/RJ11 modular, 258A, tia 568a/568b and Token Ring cables.

• CATIII 600V and CATII 1000V .

• Remote kit allows cables up to 300m away to be tested.
  .
• Tests for shielded and non-shielded cable types.

• Rugged double case with yellow soft cushion sleeve

• Automatic power off feature for extended battery life.

• Battery low indicator


• 3 1/2 digit (2000count) LCD display for multimeter functions

• Measures DC/AC Voltage, DC/AC Current, Resistance, Continuity, Diodes



Cable & Recognized Wiring Schemes
Tests for shielded and non-shielded cable types.

• Unshielded Twisted Pair ( UTP 100ohm CAT 3, 4 & 5)

• Foil shielded Twisted Pair ( FTP 100ohm and 120ohm CAT 3)

• Shielded Twisted Pair (STP 150ohm type CAT1 & CAT 6)

• 10Base-T, 100Base-TX and 100Base -T4

• TP-PMDEIA/ TIA-568A/ B

• Token Ring

• USOC

• 10Base/HUB (AT&T 258A) ,10Base-2



  Specifications:

• LED Display: 2 line by 9 LEDs

• LCD Display: 3 1/2 digit plus polarity

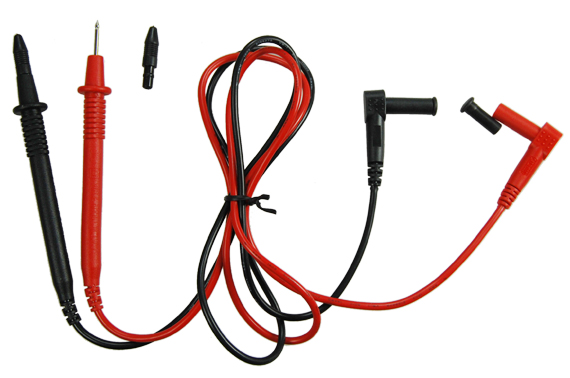

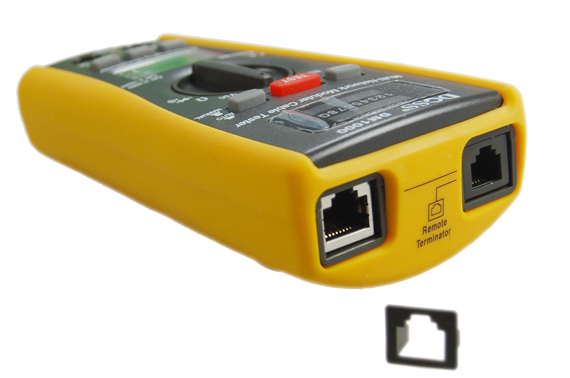

• Connectors: (2) RJ-45 (8P8C) jacks. 2 x test probe sockets

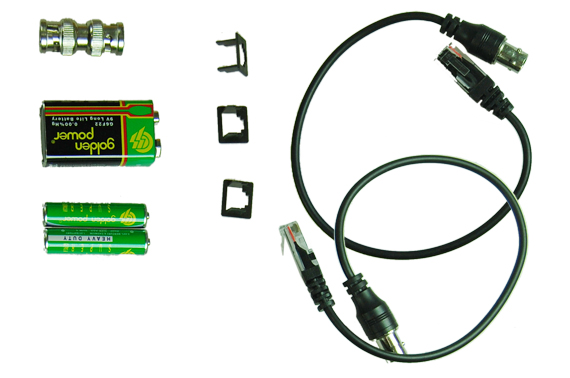

• Accessories: 2x RJ45 to 10-BASE-2 converters, RJ-45 link cable, 2 x RJ11 adapters



• Accuracy/Range: DC Voltage 600V ± 0.5%, AC Voltage 660V ± 1.0%, DC Current 200mA ± 1.5%, AC Current 200mA ± 1.8%, Resistance 20Mohm ± 0.8%, Continuity < 150ohm

• Temperature: 0 - 40°c operating

• Power: (1x) 9V dry cell battery.(2x) AAA

• Size: 16.2(L) x 7.45(W) x 4.4(H) cm

• Weight: 308g net

• Casing: ABS Plastic
